| DK PA-Systems |
 |

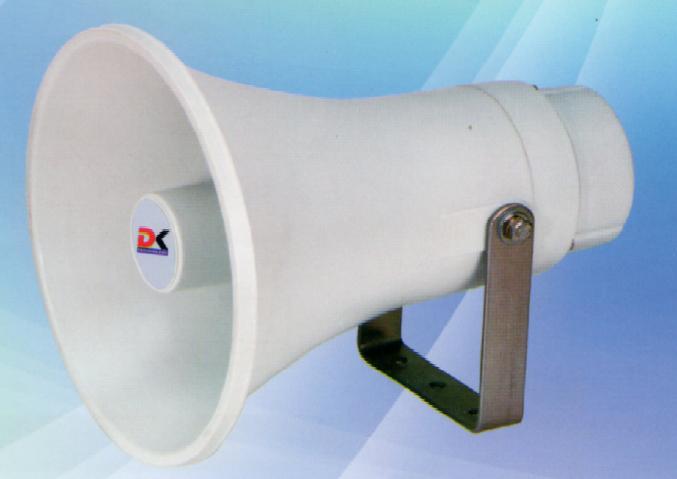

Plastic Horn Loudspeaker |
|
PR-Series |
|
|
|
|
| |
The PR series range of plastic horn loudspeaker features highly efficient performance with exceptional built quality. Fitted throughout with stainless steel exterior hardware and IP rated to IP66, the rugged ABS units are capable of withstanding all weather conditions. Available in 30, 15 and 10W versions, unit can be operated at either 100 or 70 volt line.
For your peace of mind and accurate system design, sample DK products are extensively tested in our anechoic test chamber to ensure accurate specification. Where appropriate, products are also independently tested for IP rating “copy test certificates available upon request”. |
|
|
| |
|
| |
| |
 |
|
|
Type
|
Power Taps
|
Dimensions
|
SPL
|
SPL
|
Freq.-Range
|
|
@ 100V
|
(mm)
|
(Pmax/1m)
|
(1W/1m)
|
(Hz)
|
|
PR 10/T
|
10/5/2.5/1.25W,OFF,8Ω
|
Ø142x208
|
116 dB
|
106 dB
|
330 - 11.100 Hz
|
|
PR 15/T
|
15/7.5/3.75/1.87W,OFF,8Ω
|
Ø209x272
|
120 dB
|
108 dB
|
280 - 11.200 Hz
|
|
PR 30/T
|
30/15/7.5/3.75W,OFF,8Ω
|
Ø235x302
|
125 dB
|
110 dB
|
260 - 12.100 Hz
|
|
|
| |
| |
|
|
|
|
|
